€285.00

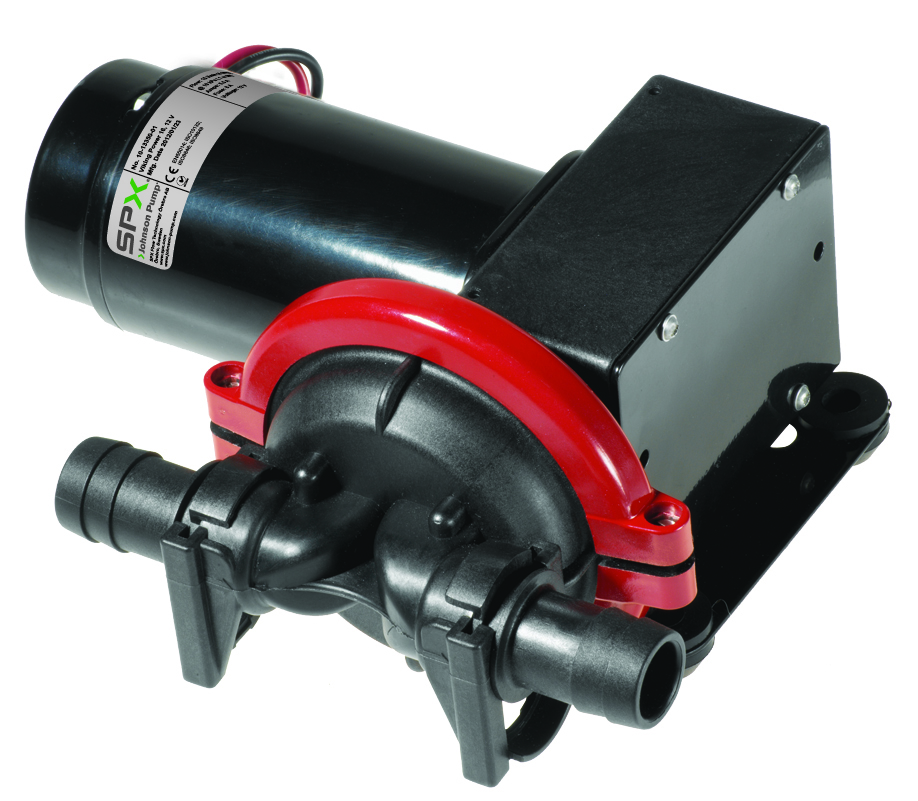

The Viking Power 16 Johnson Pump is self-priming up to a height of 3 meters. With its low pulse and muffled rubber bracket, this pump offers quiet operation. Specifically designed to pump waste water, the Viking Power 16 has been built to last, and engineered for easy maintenance. When it comes time to replace the premium grade reinforced nitrile rubber diaphragm, you can put in a spare without even removing the pump from the system. Delivered with 1″ hose and ¾” hose ½” BSP KlickTite™ XL connectors. 90° KlickTite™ XL connectors available as extra accessory.
Motor 2.3 amp (12V), 1.2 amp (24V) at 0.1 bar
12/24V DC (with built-in thermal protection)
Body Nylon, glass-fiber reinforced
Valves Nitrile rubber Diaphragm Reinforced nitrile rubber Length 186 mm – 7.3″
Width 235/181 mm – 9.3″/7.1″
Height 118/204 mm – 4.6″/8″
Weight 2.6 kg – 5.7 lbs
|
Order No . |
Description |
Capacity, open flow |
Capacity at 0 .1 bar |
Max lift |
Max head |
Connection |
|
10-13350-03 |
Viking Power 16, 12V |
16 l/min – 4.2 GPM |
15 l/min – 4.0 GPM |
3 m – 9.8 ft |
3 m – 9.8 ft |
KlickTite™ XL connectors for 1″ hose or ¾” hose and ½” BSP threads; straight and 90° (optional) |
|
10-13350-04 |
Viking Power 16, 24V |
16 l/min – 4.2 GPM |
15 l/min – 4.0 GPM |
3 m – 9.8 ft |
3 m – 9.8 ft |
| Weight | 0.000 kg |
|---|---|
| Choose Type | Viking Power 16, 12V, Viking Power 16, 24V |
